Description and Application

Led Shoebox Light

MTA-RZ LED Shoe Box light is a perfect fixture for medium height parking lot poles and new construction applications in industrial, warehouse, manufacturing, commercial, office, residential, and hospitality facilities.



Product features

  • High efficiency LED driver, the wide range input voltage AV100-277V or AC200-480V;
  • Life time: 50,000 + hours life span
  • Intelligent control: Dimming, Photocell, Microwave Motion Sensor optional
  • Mounting option: Slip Fitter Mount, Trunnion Mount and Driect Mount options

Product specifications

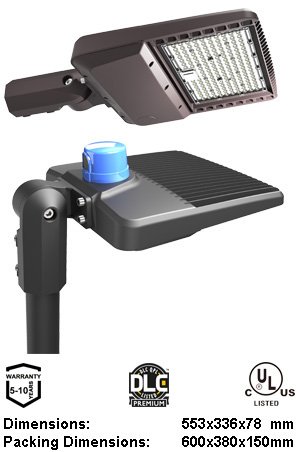

Picture Model No. MTA-RZ-60W/100W/120W/150W
Led type Phillip lumileds Lens PC
Luminous flux >140lm/w Luminaries efficiency >90%
Led driver Phillip Input Voltage AC100-277V
Lumen degration Less than 30%(L70) over 54000 operational hours CCT 4000K/4500K/5000K/5700K
Life time >50,000hrs Warranty 5-10 years
PF >0.95 CRI Ra>70
IP rating IP65 Insulation Class I and II
Working Temperature -30 to 50 Surge protection 6KV-10KV
Dimmable 0-10v Intelligent control Photocell and motion sensor
Housing material Die cast aluminum Finish bronze/black/red/green/ white
Certified UL ETL DLC premium Light distribution Type II/ Type III
N.W. 5.0KG G.W. 5.8KG

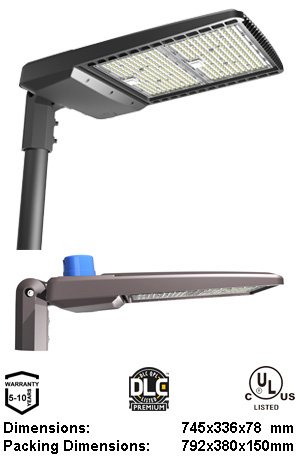

Picture Model No. MTA-RZ-200W/240W/300W
Led type Phillip lumileds Lens PC
Luminous flux >140lm/w Luminaries efficiency >90%
Led driver Phillip Input Voltage AC100-277V
Lumen degration Less than 30%(L70) over 54000 operational hours CCT 4000K/4500K/5000K/5700K
Life time >50,000hrs Warranty 5-10 years
PF >0.95 CRI Ra>70
IP rating IP65 Insulation Class I and II
Working Temperature -30 to 50 Surge protection 6KV-10KV
Dimmable 0-10v Intelligent control Photocell and motion sensor
Housing material Die cast aluminum Finish bronze/black/red/green/ white
Certified UL ETL DLC premium Light distribution Type II/ Type III
N.W. 8.0KG G.W. 9.0KG

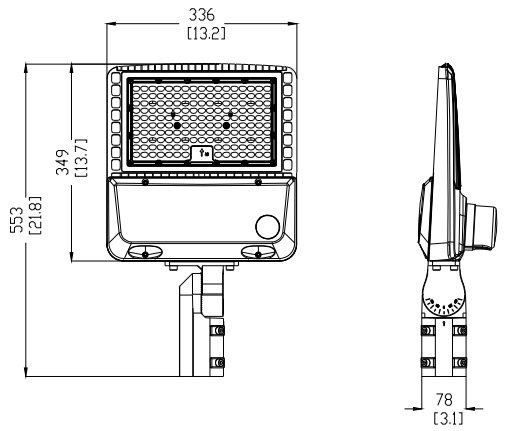

Product size and structure features

SIZE: 60W 100W 120W 150W

21.78″×13.23″×3.07″ (553x336x78mm) -Slip Fitter Mount

22.41″×13.23″×6.19″(569x336x157mm)- Driect Mount

19.26″×13.23″×3.19″ (489x336x81mm) – Trunnion Mount

200W 240W 300W

29.33″×13.23″×3.07″ (745x336x78mm) – Slip Fitter Mount

29.96″×13.23″×6.19″ (761x336x157mm) -Driect Mount

26.81″×13.23″×3.15″ (681x336x80mm) – Trunnion Mount

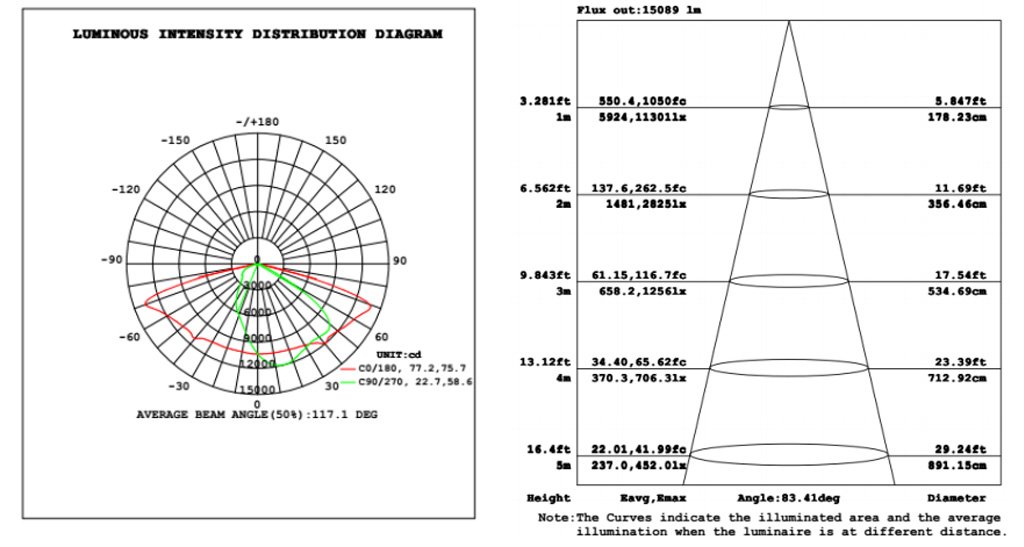

Photometry and Type VS:



Installation instruction
